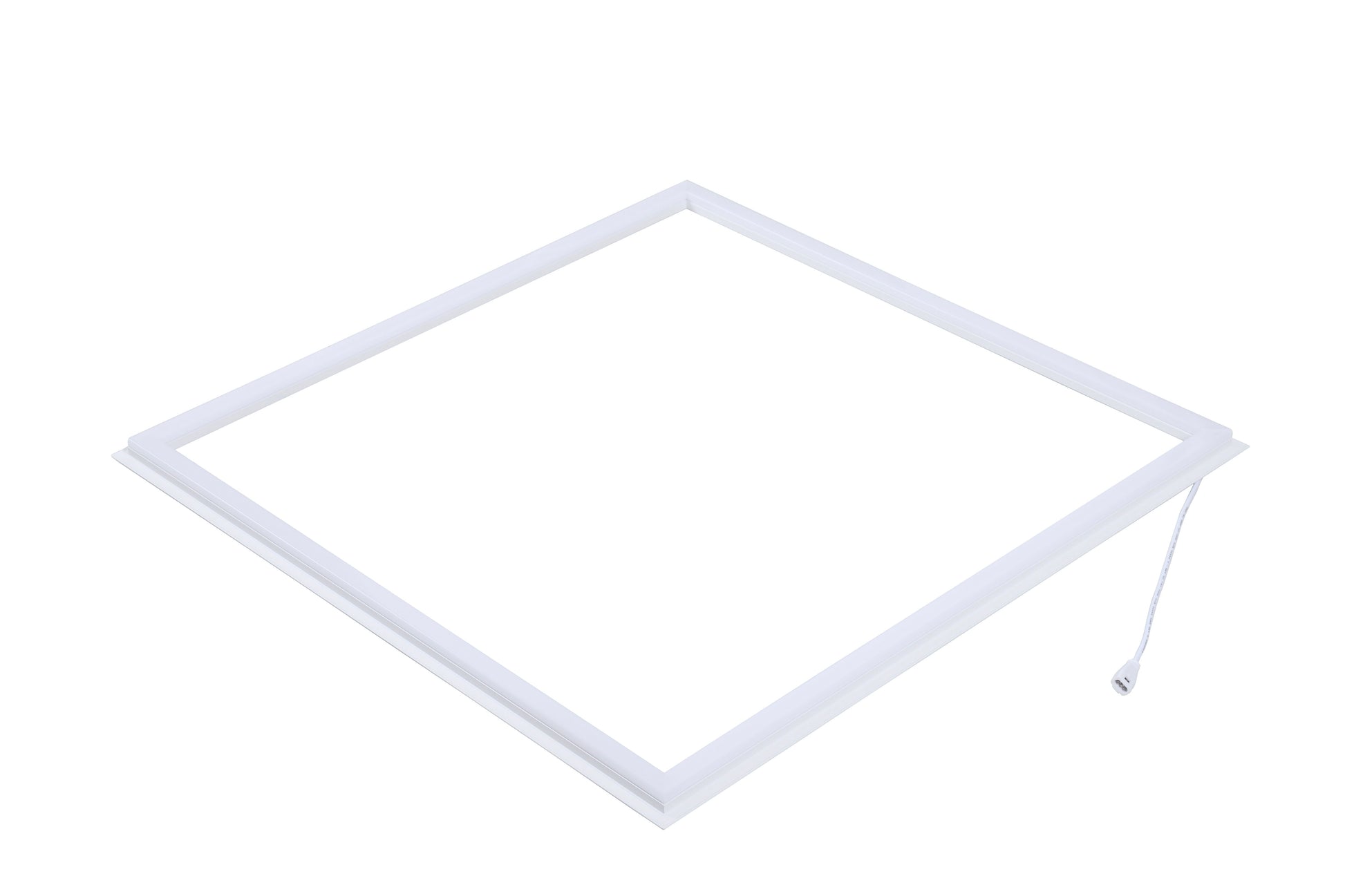

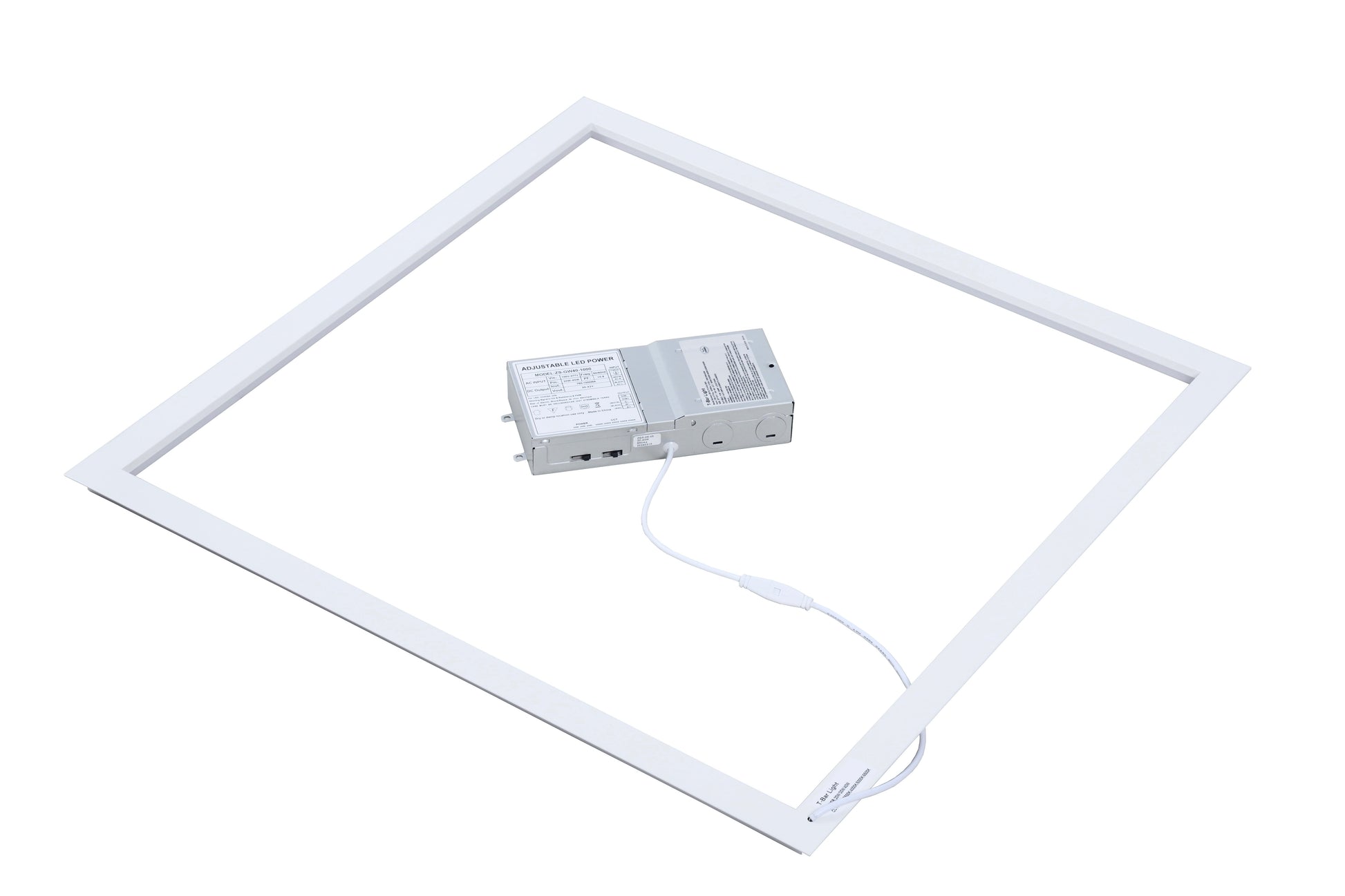

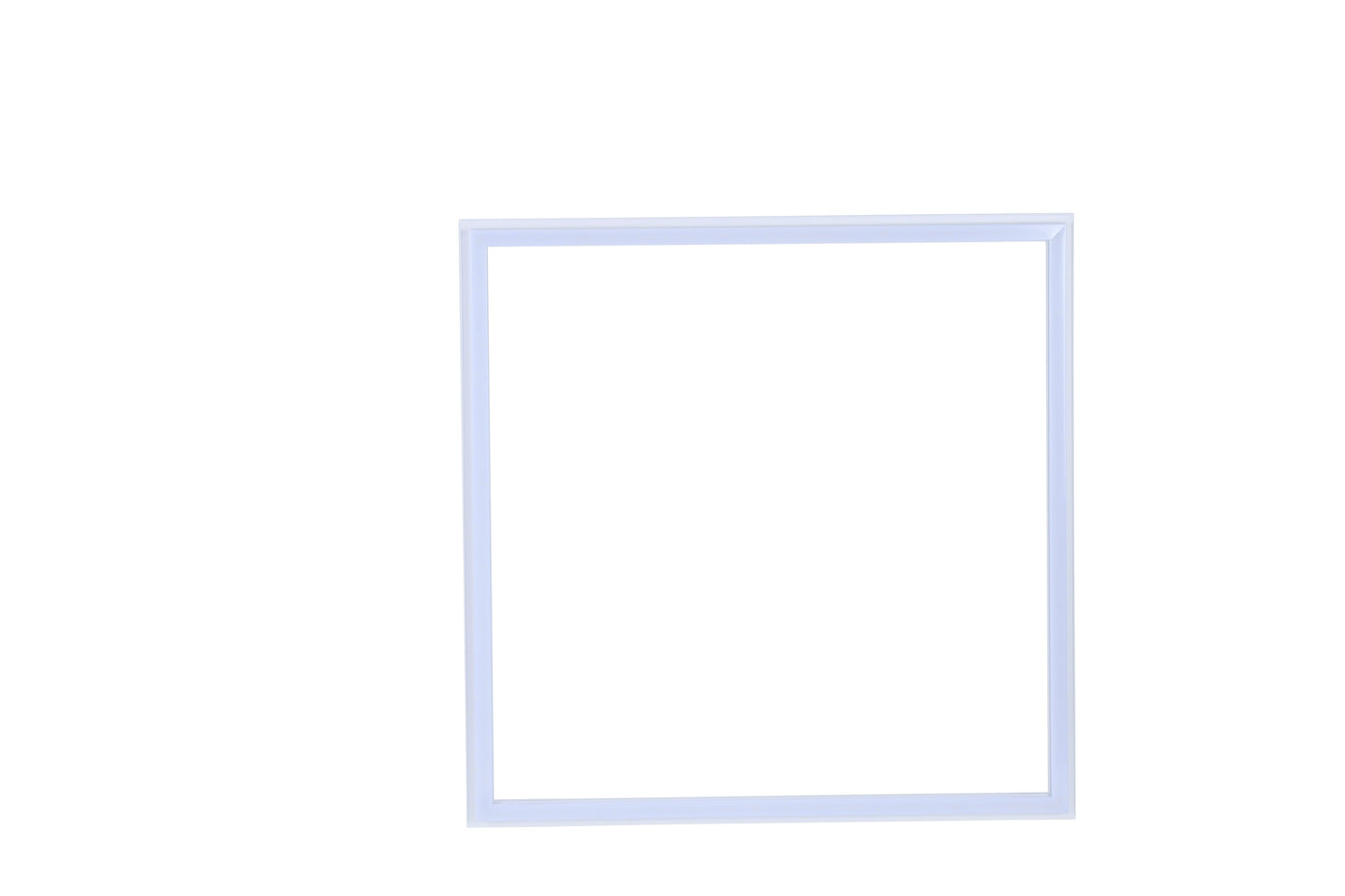

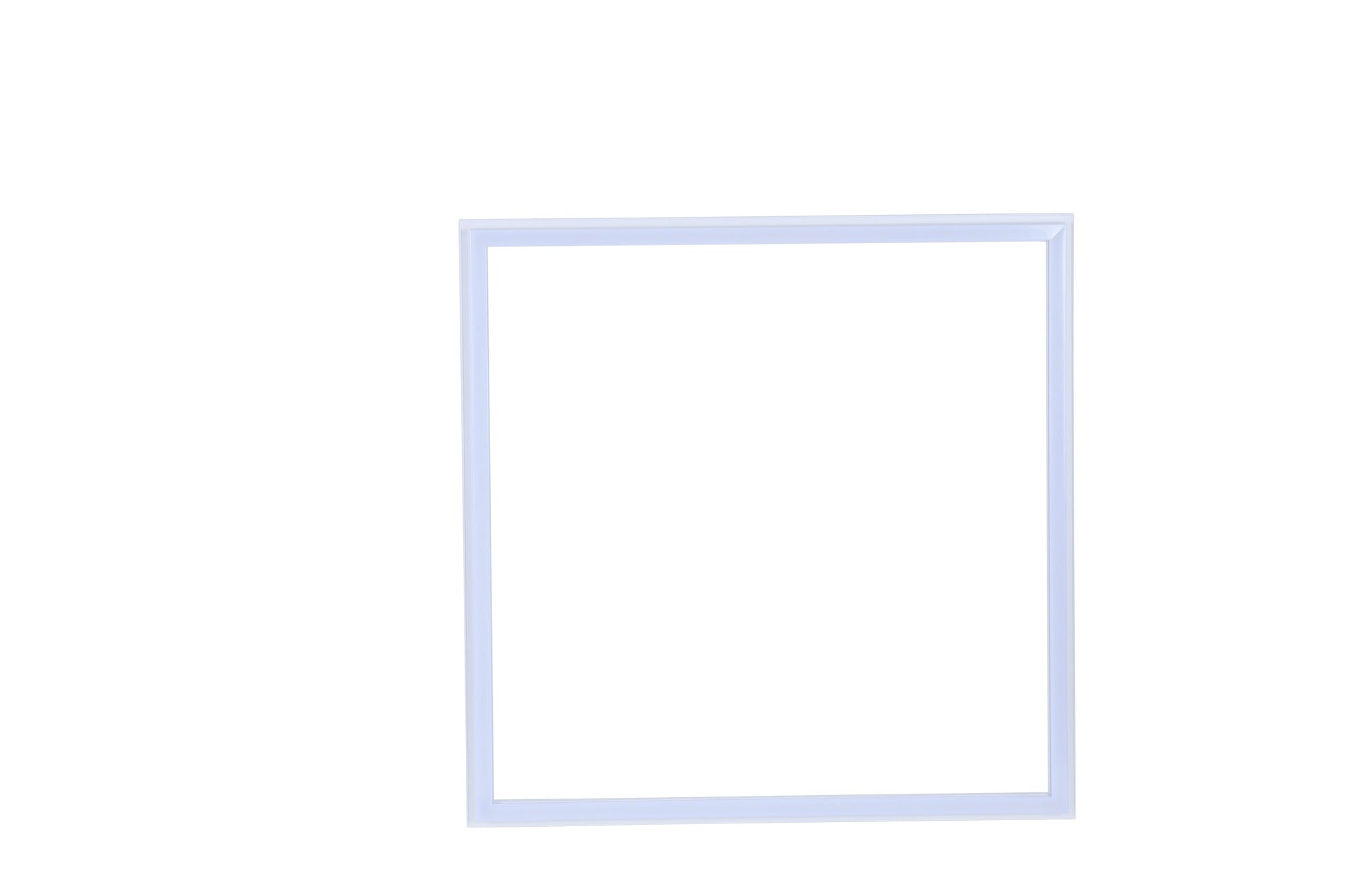

2ft x 2ft Grid Frame LED Panel suitable for recessed mounting with T-bar

• 5-in-1 Color Temperature (3000K-3500K-4000K-5000K-6500K)

• 3-in-1 Wattage (20/30/40W)

• Hassle-Free Set up

• 0-10V Dimming

Features and Specifications

Mounting

Fixture is suitable for recessed mounting with T-bar Suspended installation

Design and Functionality

sleek, modern look with top-notch functionality

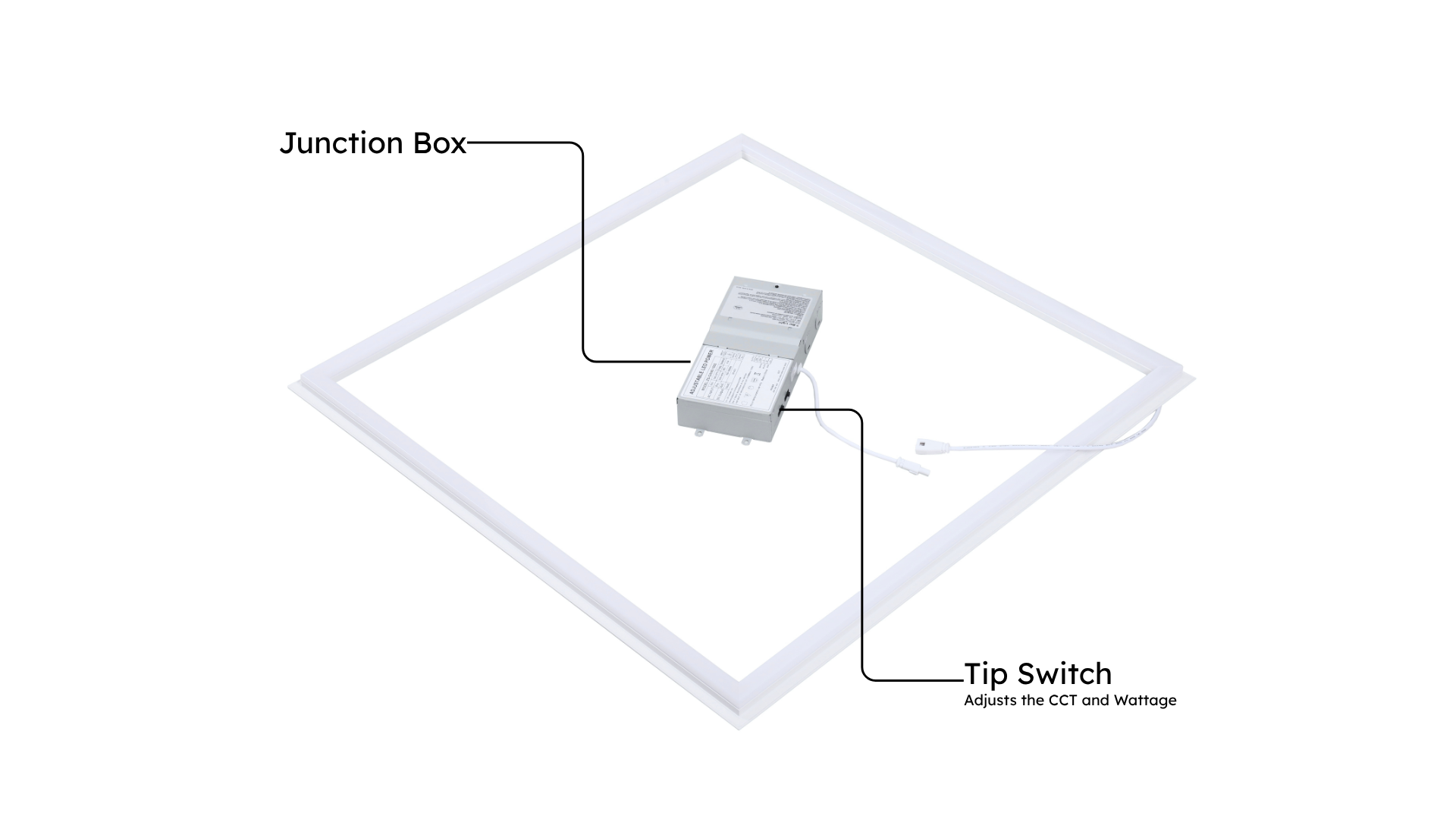

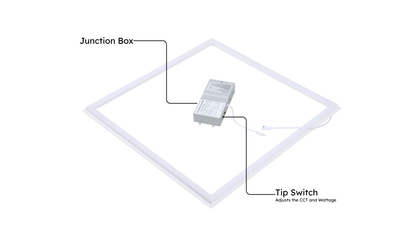

Wattage and CCT selectable reduce your stock SKU

 Cutting-edge optical tech, it matches the lighting specs of traditional LED panels

Electrical

• Input voltage: 120-277 VAC
• Operating frequency: 50/60Hz
• Power factor: >0.95
• Ambient temperature range: -20°C ~+45°C
• Color Temp: 3000/3500/4000/5000/6500K
• Dimmable: 0-10V dimming
• THD: <10%
• IP Rating: IP40
• CRI: >80
• Beam angle: 120°

Applications

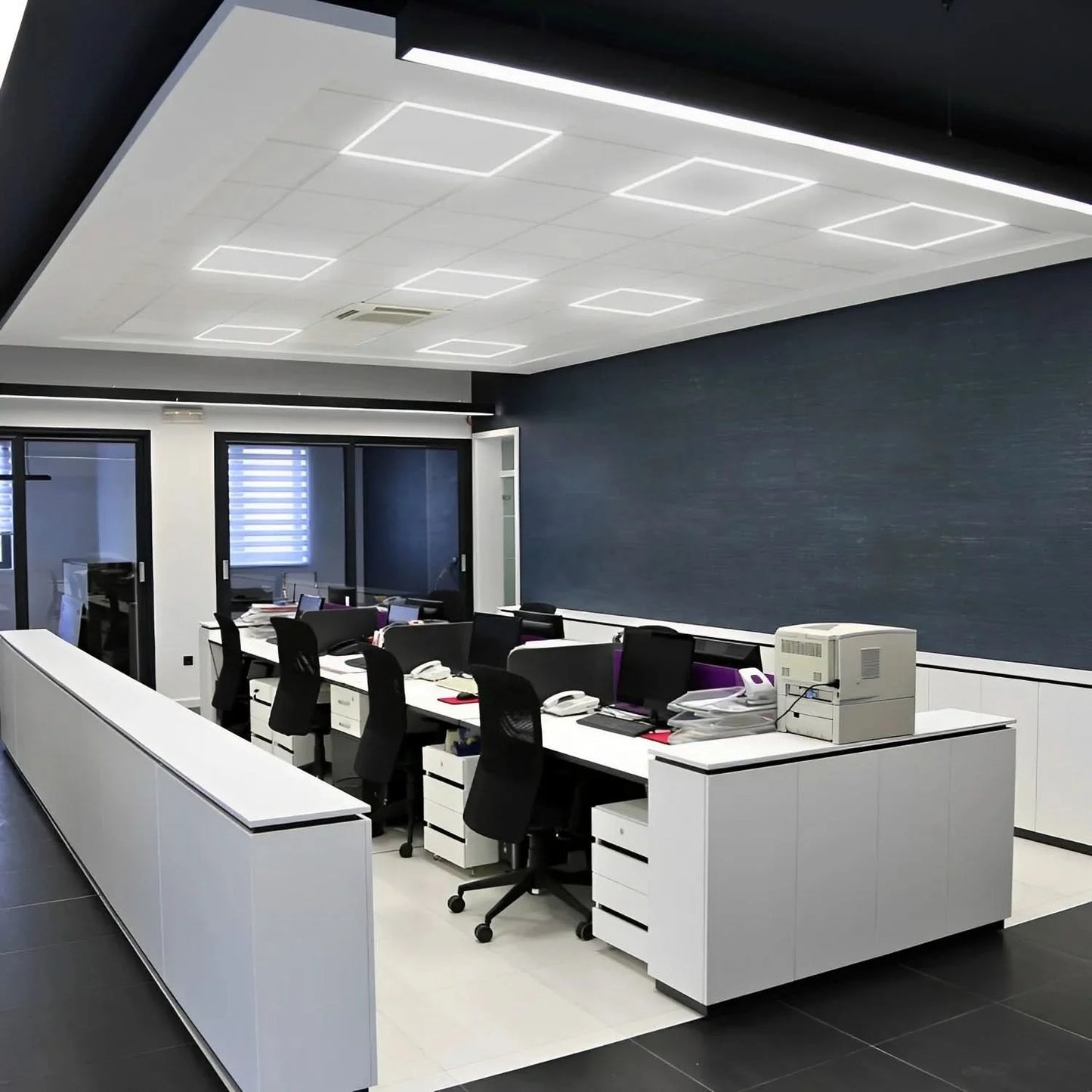

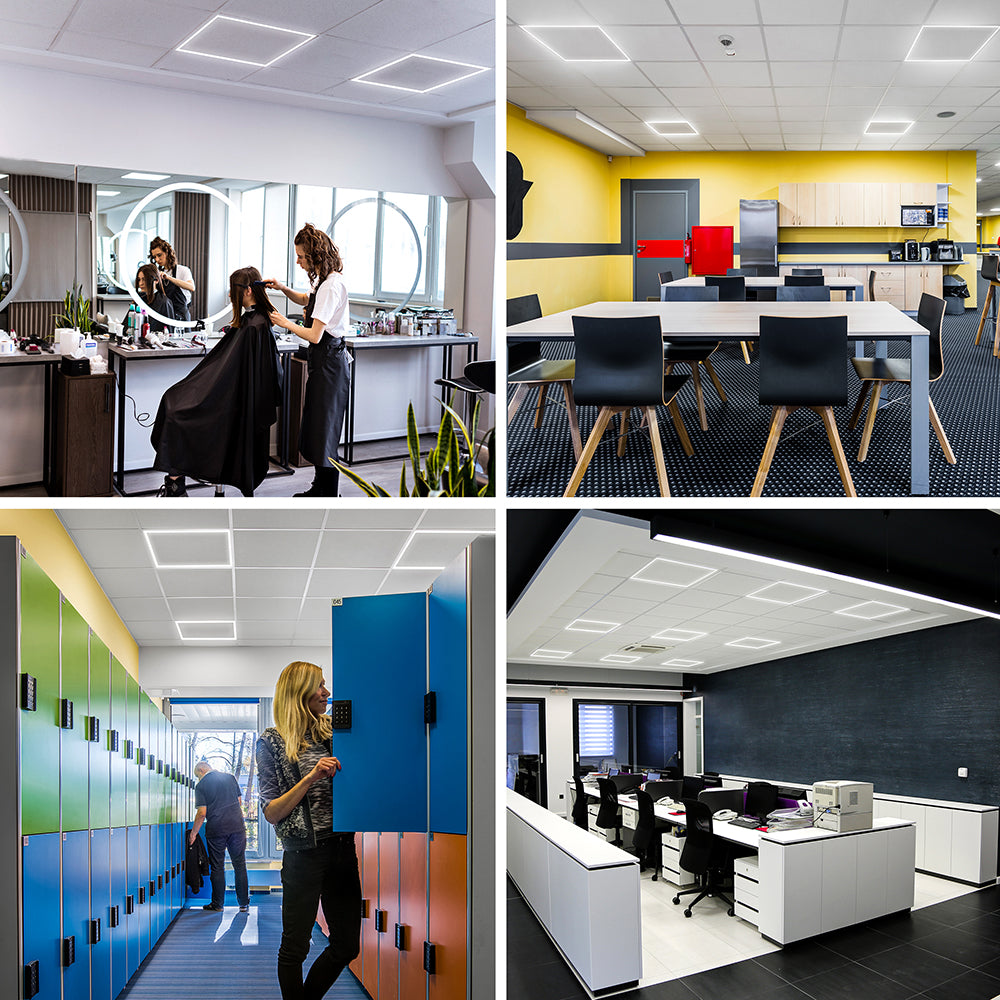

Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.

Installation

• Fixture is suitable for recessed mounting with T-bar
• Suspended installation

Upgrade your lighting experience with the 2x2 Frame LED Panel: a sleek and versatile solution that offers efficient illumination, customizable options, and energy savings. Replace your old fluorescent lights with this modern marvel, featuring selectable wattage (20W/30W/40W) and adjustable color temperature (3000K/3500K/4000K/5000K/6500K). Enjoy bright, even light with a high efficiency of 130lm/W and a long lifespan of 50,000+ hours. The T-bar's sleek design and easy installation make it a perfect fit for homes, offices, shops, and more. Plus, rest assured with ETL and DLC certification, a 5-year warranty, and free returns and replacements. Save up to 70% on energy costs and potentially qualify for energy rebates with this reliable and customizable LED panel.
