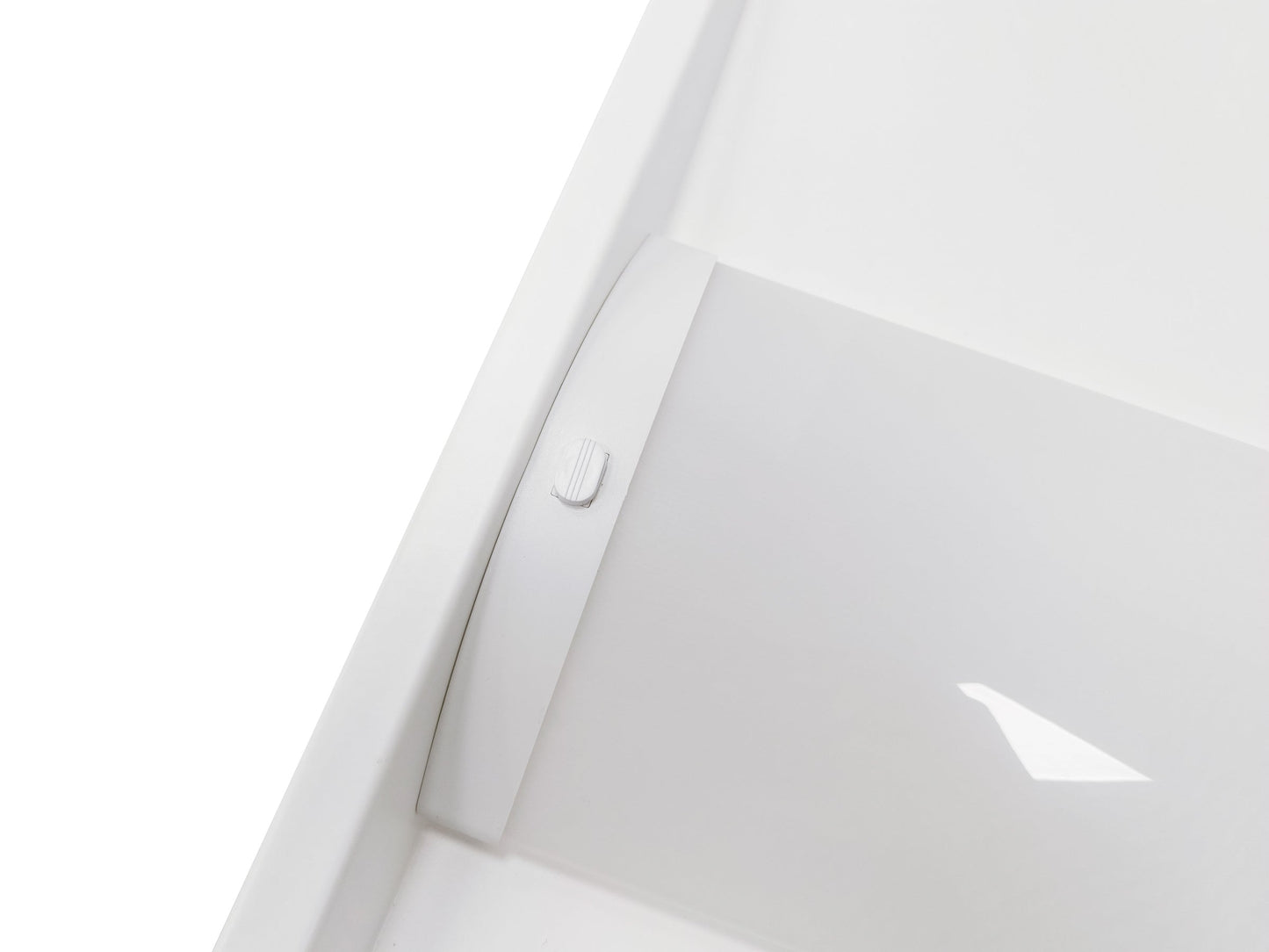

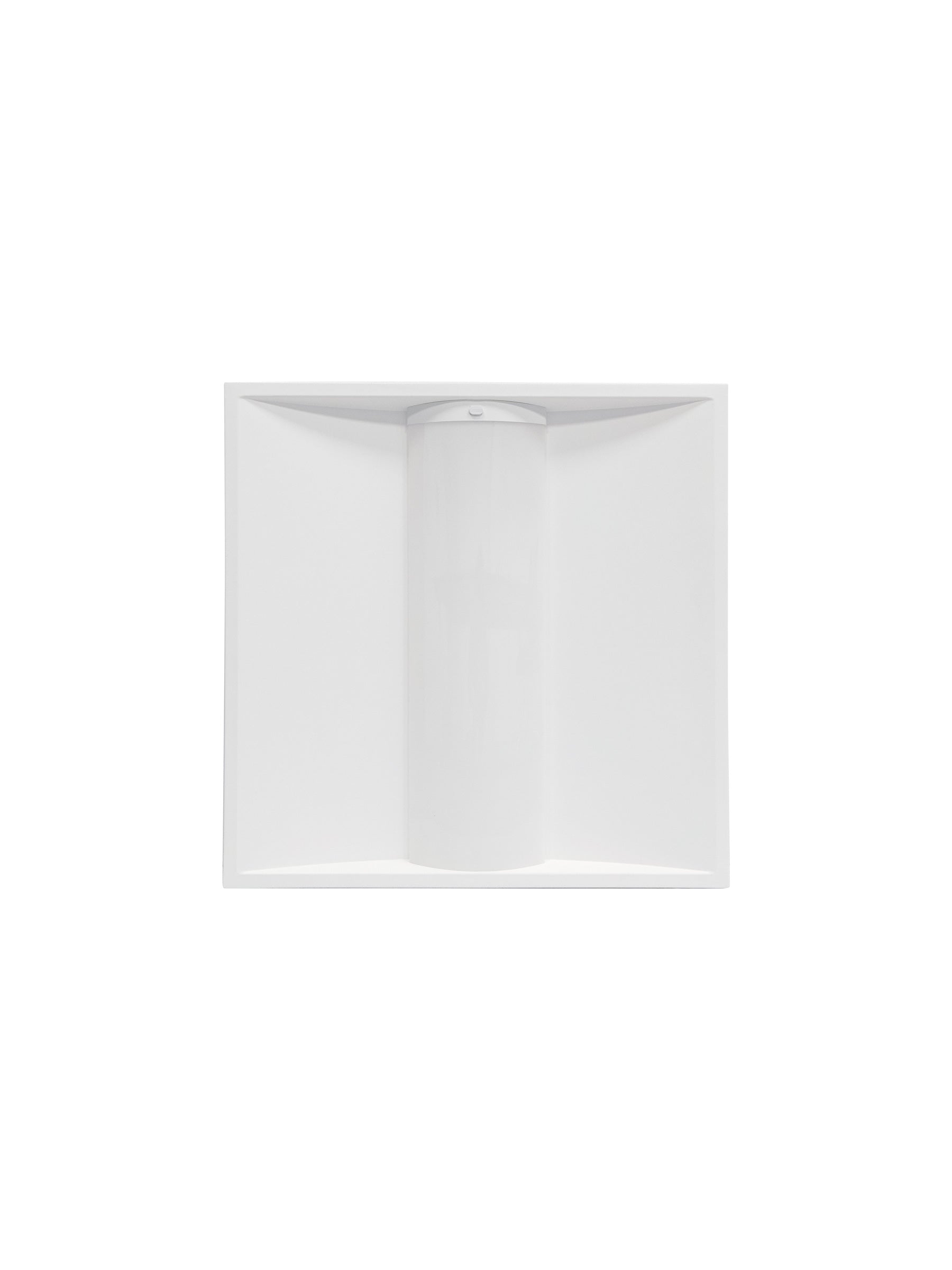

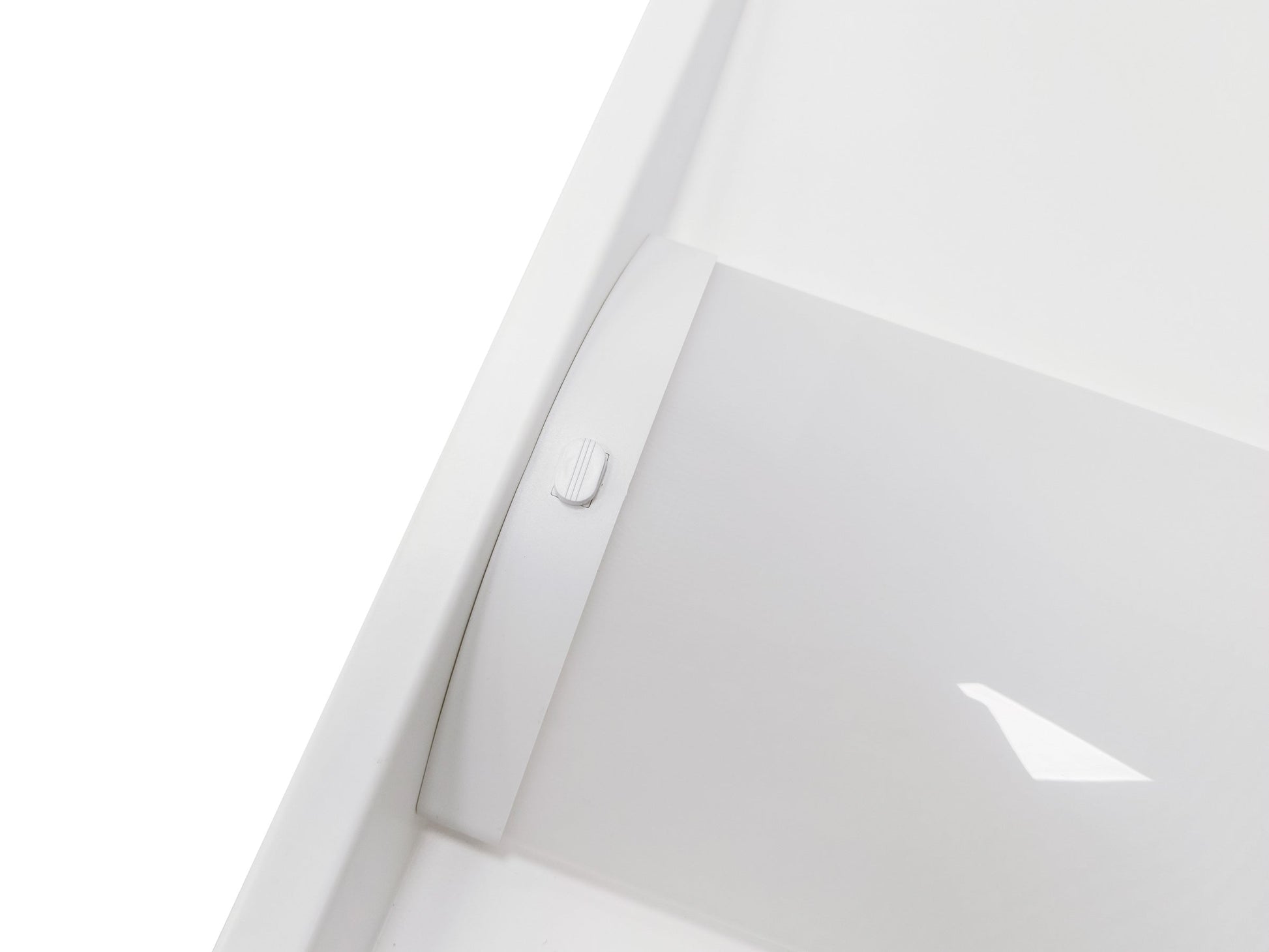

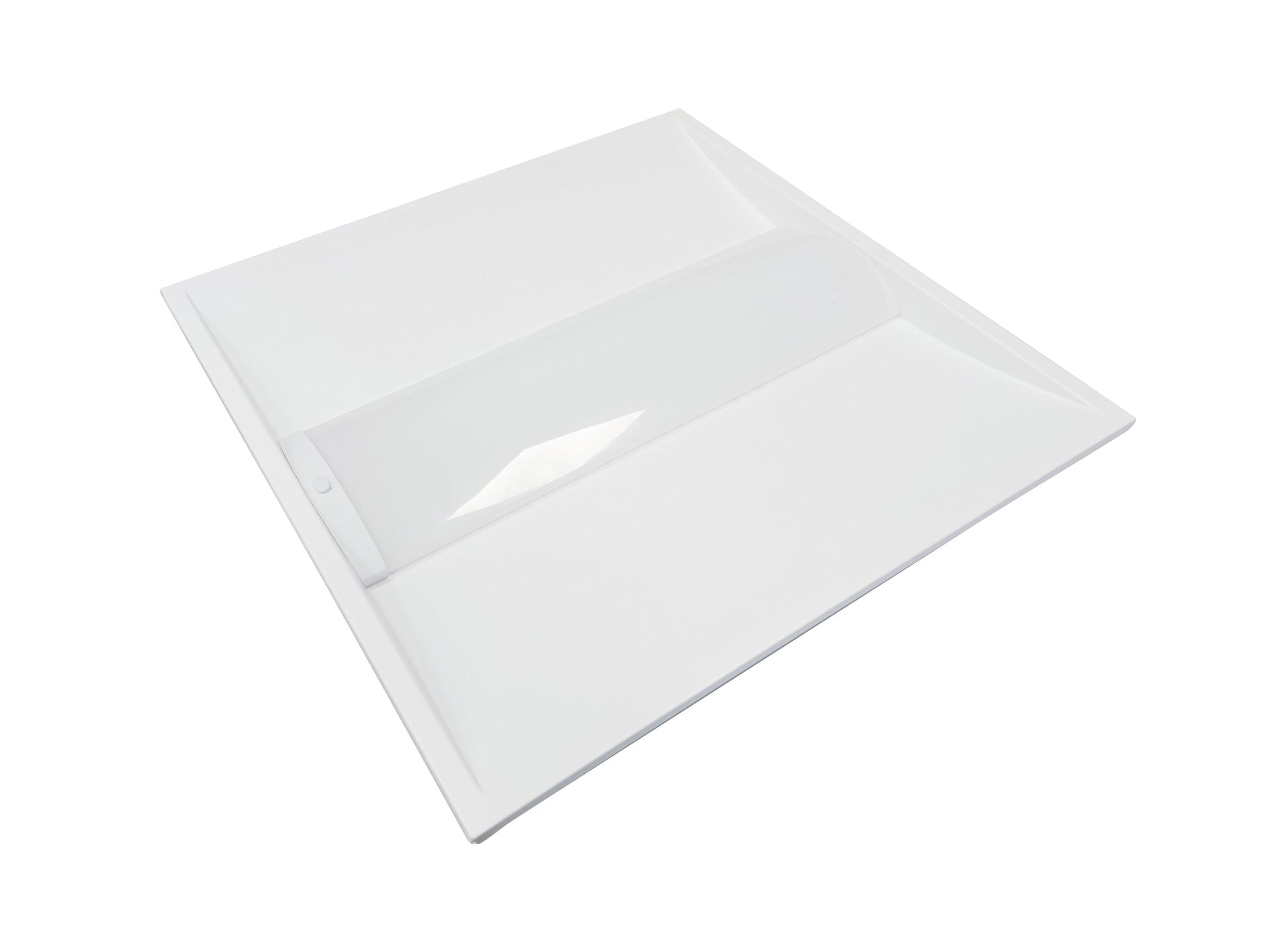

LED Troffer Light with Sensor, 2x2, Adjustable Watts 20W/25W/30W/35W/40W and CCT 3000K-6500K, 5200 Lumens

Designed for maximum flexibility and superior quality, the 2ft. x 2ft Troffer Ceiling Lights are the perfect lighting solution for various settings. Featuring a tunable CCT range of (3000K-3500K-4000K-5000K -6500K), these lights offer adjustable color temperature options. The lights also have a wide power range of (20/25/30/35/40W)  and 0-10V dimming capabilities, providing full control over brightness level for optimal lighting. With a high lumen output, these lights deliver clear and bright illumination. UL and DLC listed to ensure safety and quality, they are suitable for numerous spaces such as commercial, industrial, educational, healthcare, and residential environments.

Features and Specifications

Mounting

Recessed, Surface mounted, Suspended

Design and Functionality

• Precision die-formed steel housing in a white finish
• Recessed design fits most standard T-bar grid ceilings
• 5 Wattage and 5 CCT switches located on driver junction box

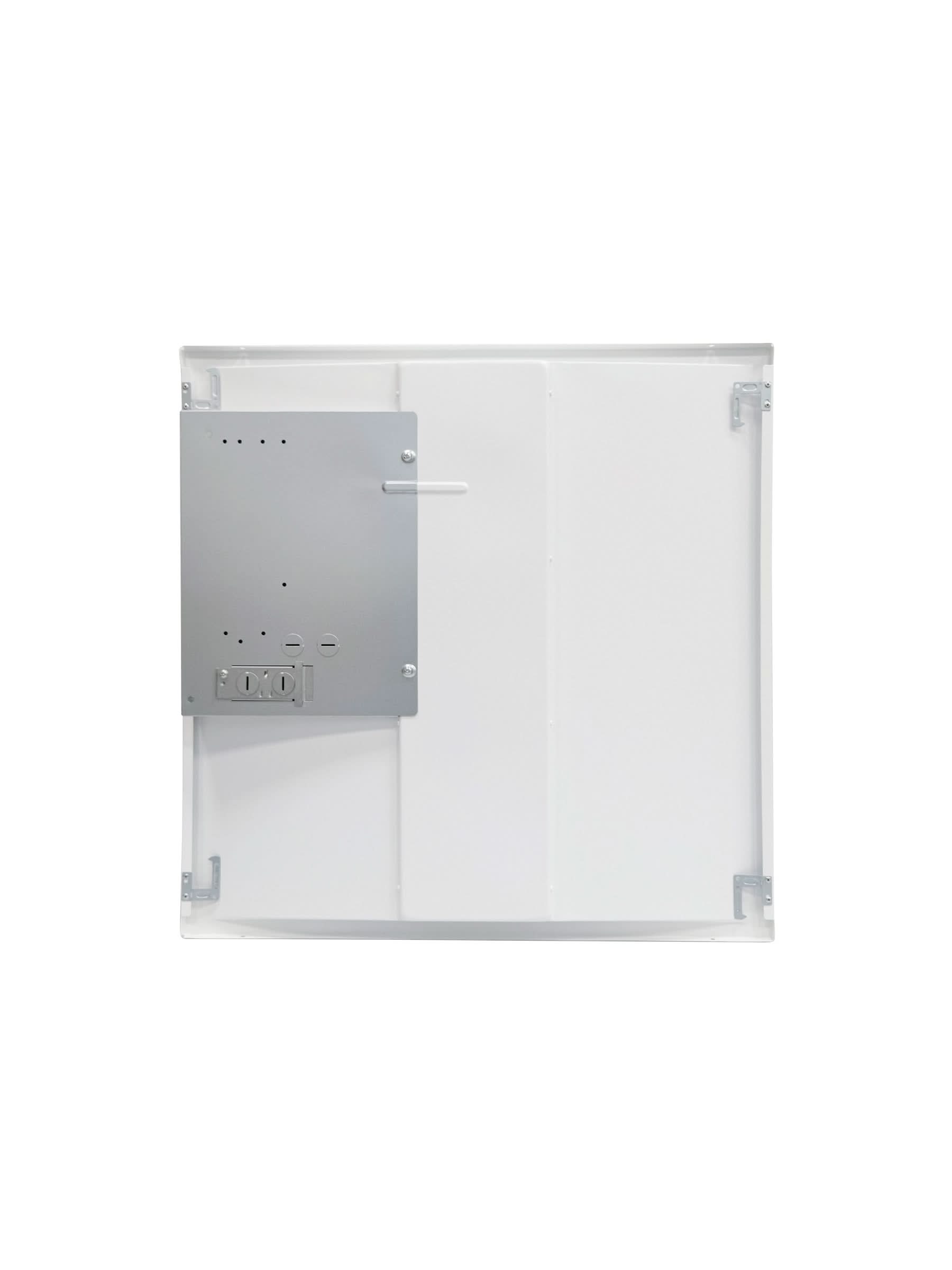

• Large driver box for easy installation and wiring

Electrical

• Input Voltage: 120-277 VAC 50/60Hz
• 0-10V dimmable
• THD≤10%, PF≥0.95

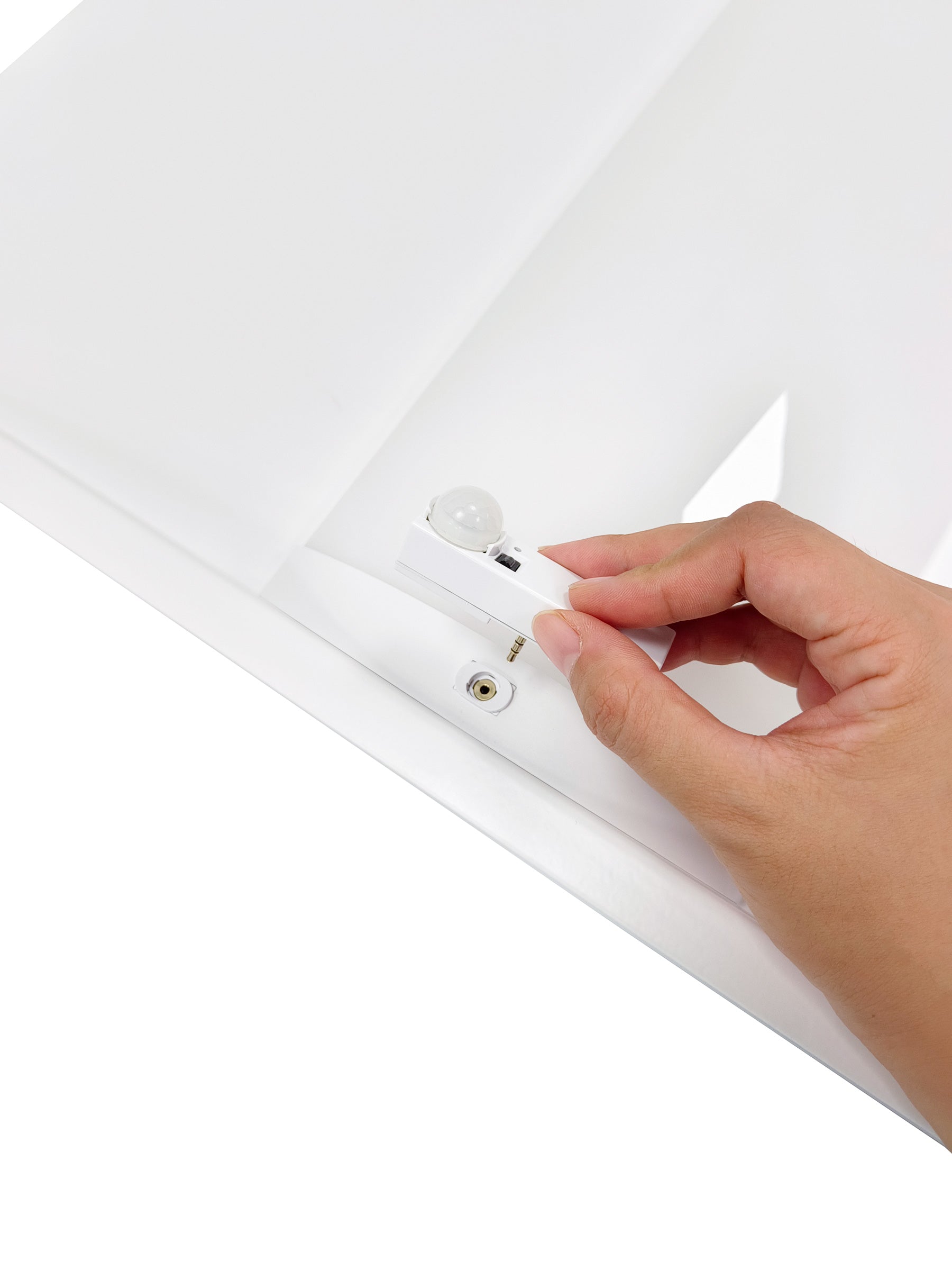

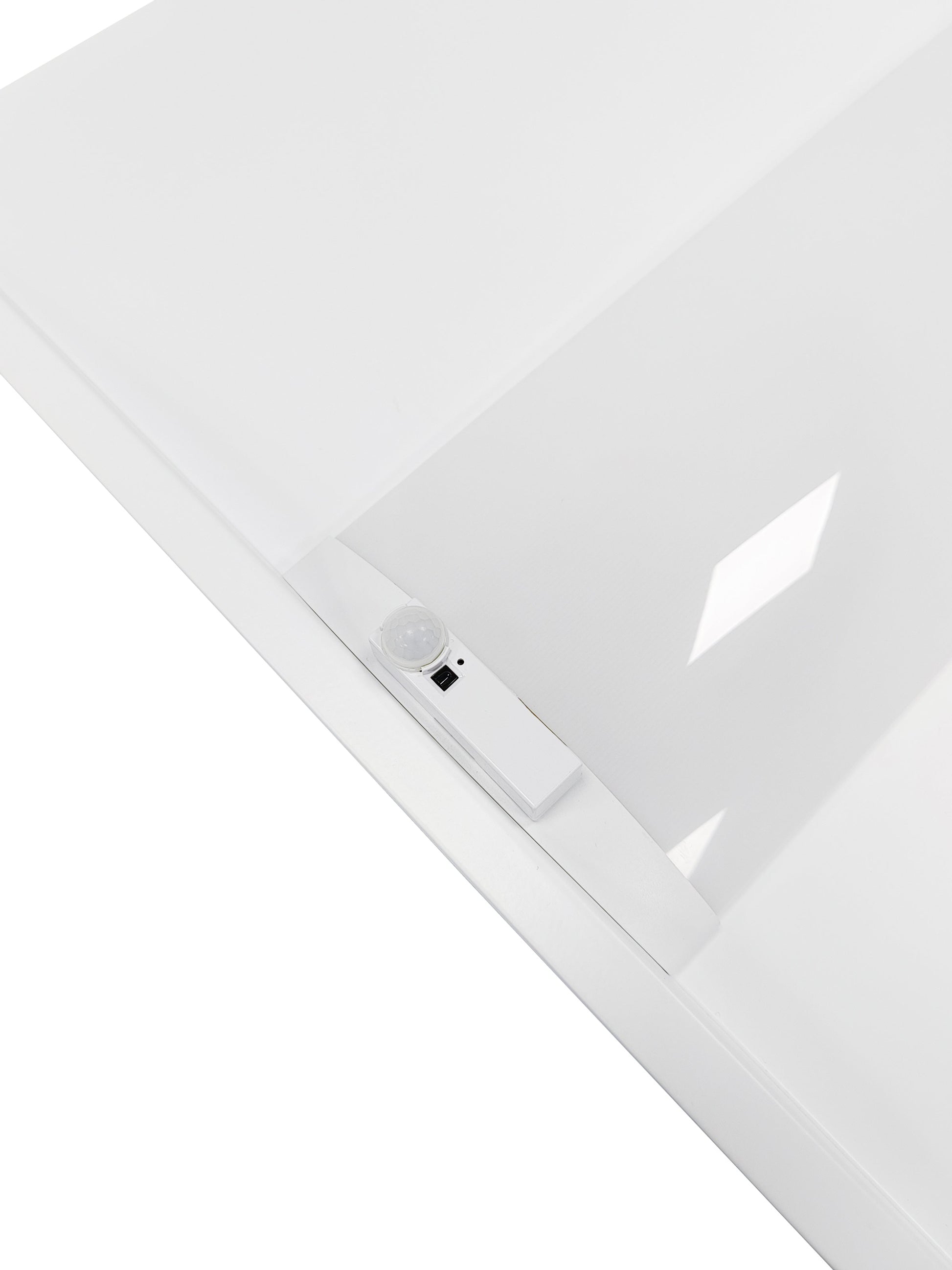

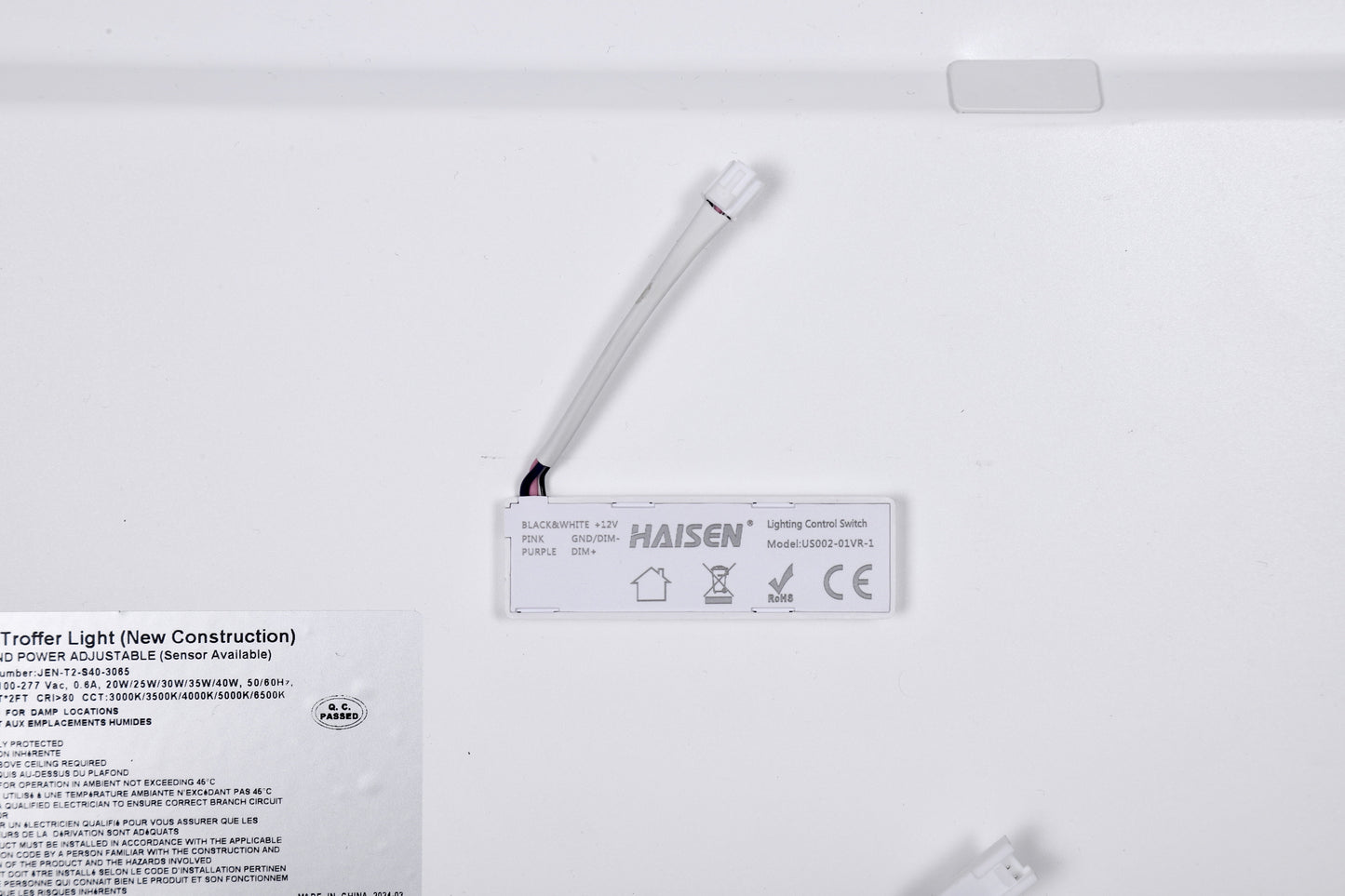

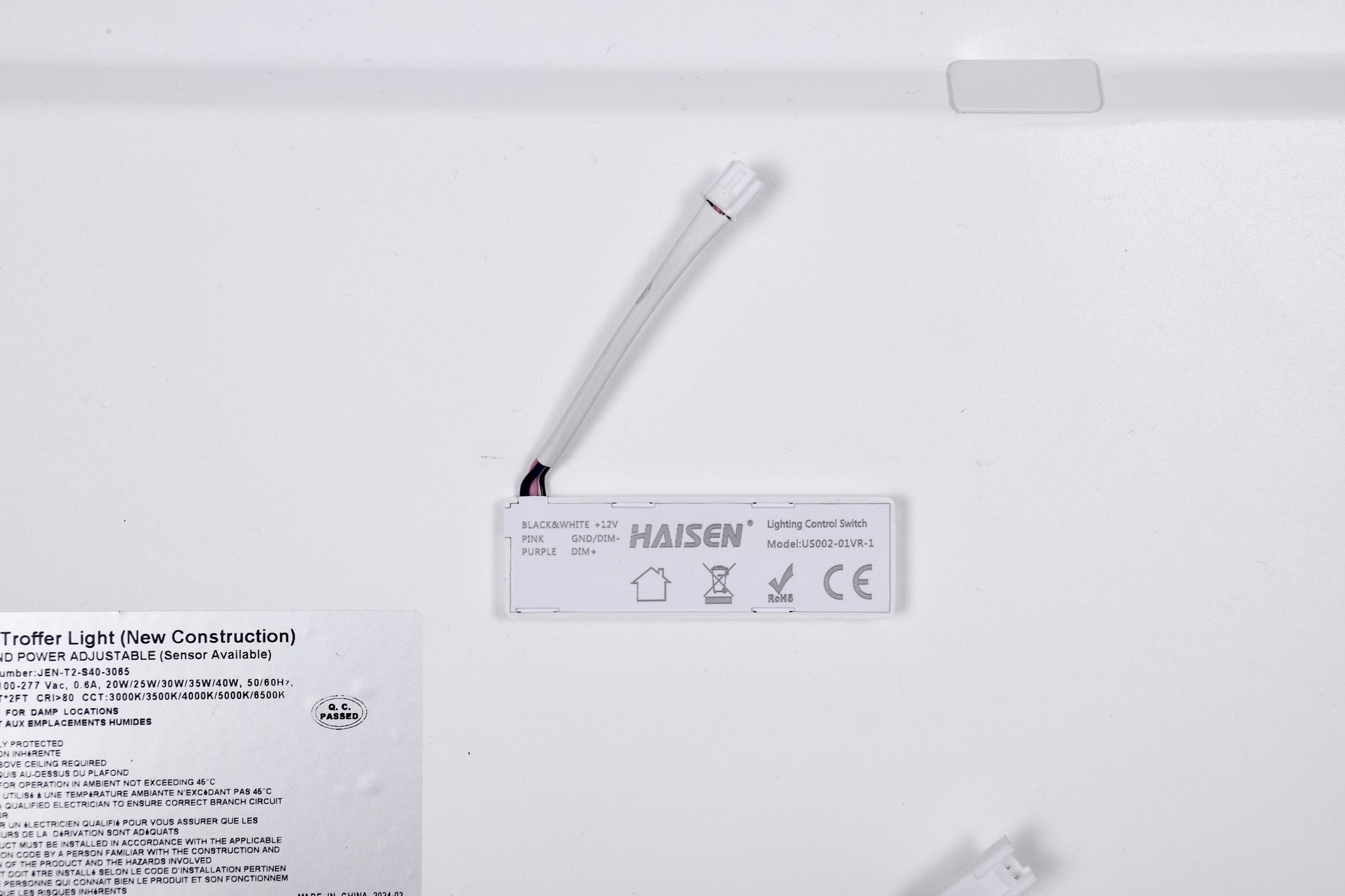

• HAISEN Sensor


Applications

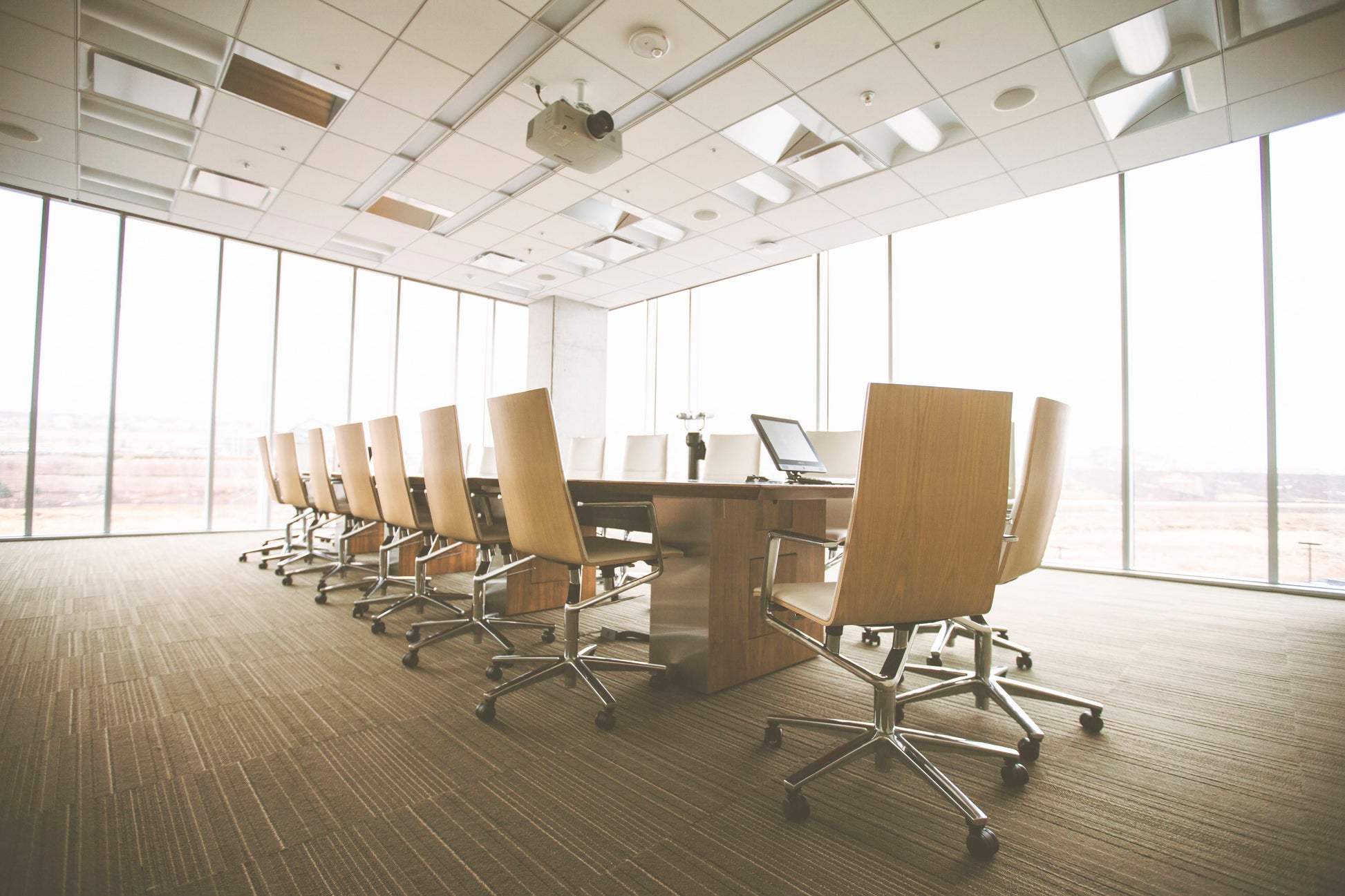

Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.

Installation

• Unit simply lifts through grid ceiling and rests on T-bars
• Easy installation in new construction or retrofit
• Standard recessed mounting in most 2’ x 2’
• Earthquake clips included
• Easily set wattage and CCT during installation using the adjustment switches located on the driver box
• Use in ambient temperatures ranging from -4°F to 104°F
