Yescom 24" Front Wheel Electric Bicycle Motor Kit 36v 750w

Powerful 36v 750w Electric Bicycle Motor Kit with 24" Front Wheel, suitable for installation of 24" x 2 3/8" to 3" tires, can be installed disc brakes, matched universal disc brakes and V brakes. The hub motor allows the speed up to 34 mph.

High Quality:

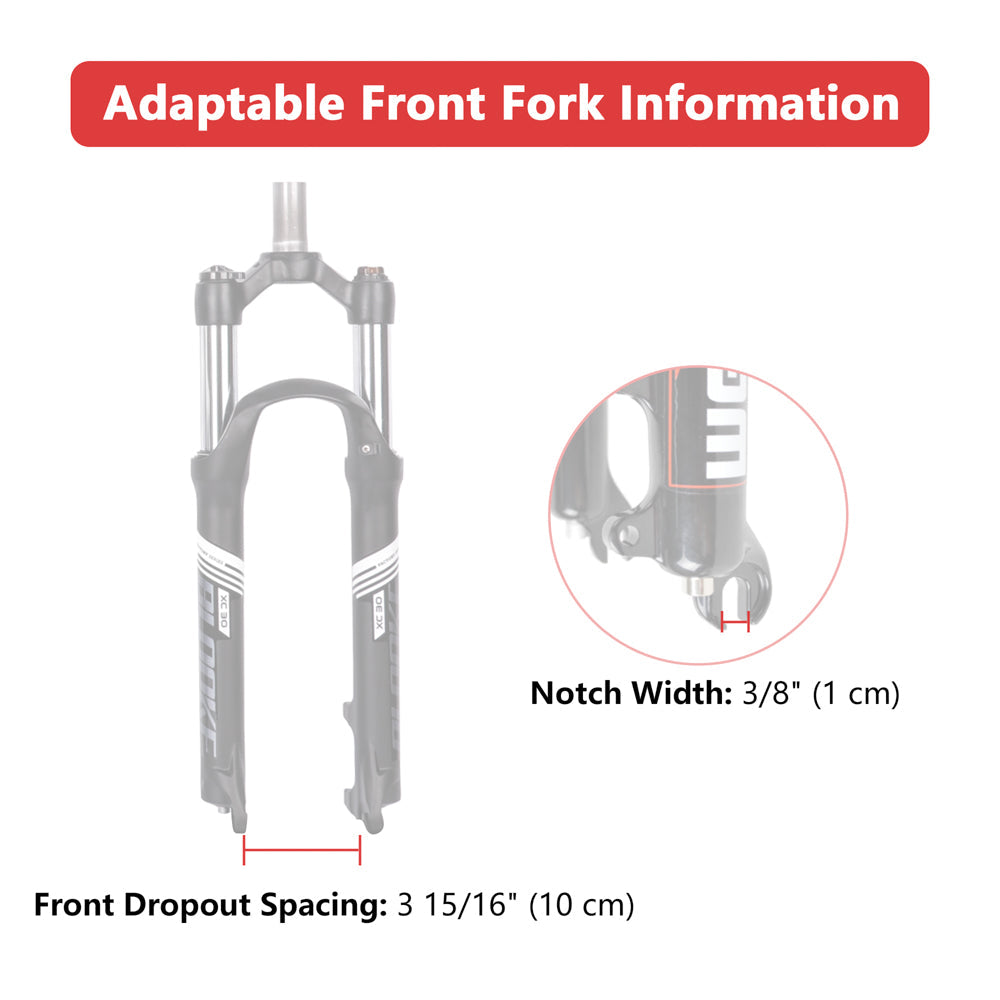

• Suitable Tire Size - Fit for any 24" bicycle frame with 3 15/16" front dropout spacing
• Aluminum alloy frame can support up to 220 lbs, ensuring durability and stability
• E-bike Conversion Kit - easy to convert your bike to an electric powered scooter/moped

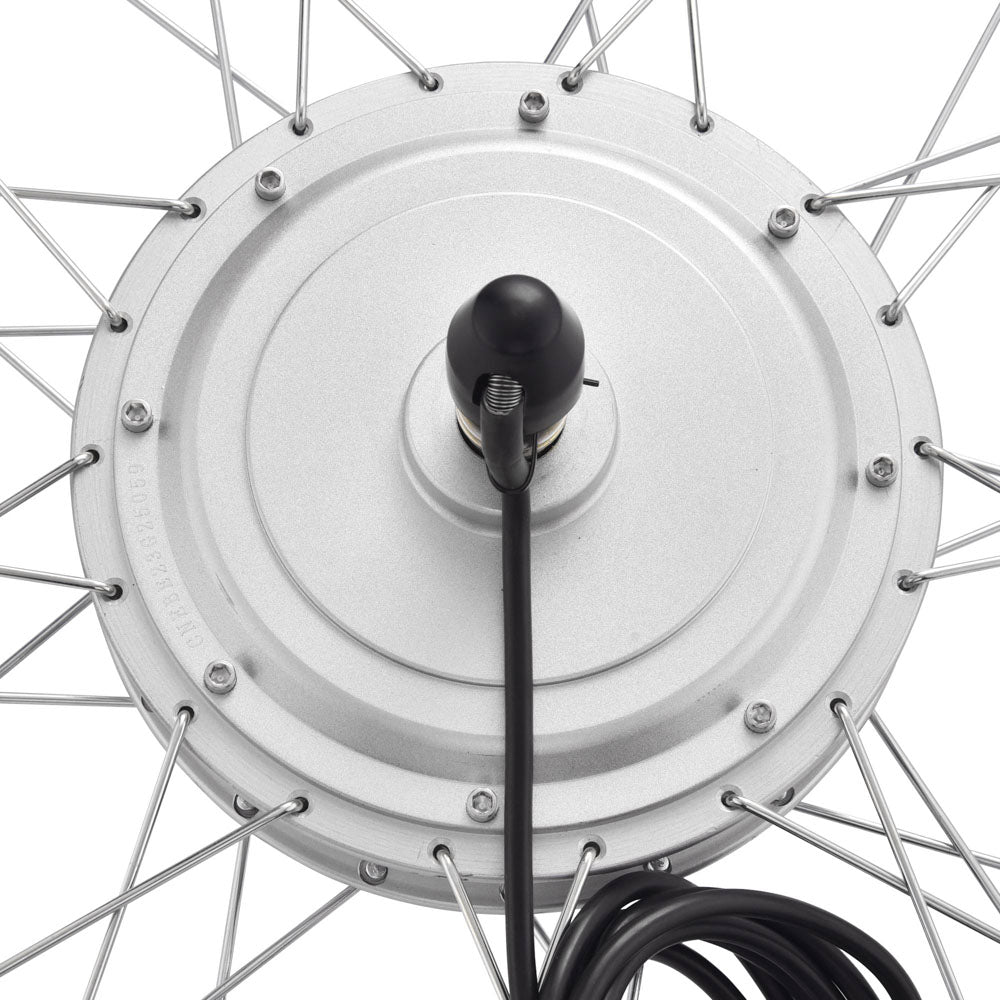

• 750W powerful brushless gearless hub motor with 34 mph top speed
• Hand brake shuts off motor automatically for saving energy and preventing the motor from overheating
• Thumb throttle with 3 LED battery indicator lights for displaying battery status, perfect to avoid stopping working caused by low battery suddenly
• Compatible with universal disc brakes and V-brakes, choose which brakes you need to use with your wheels, perfect for bike assembly and modification

Product Details:

• Overall Dimension(Dia.xW): 20 1/2" x 1 5/8"
• Compatible Tire Size: 24"
• Controller Power: 750W
• Motor Voltage: 36V
• Recommended Battery Specification: 36V/26A
• Recommended Battery Capacity: Over 15 Ah
• Suitable Brake Type: Disc Brake / V-Brake
• Motor Torque: 55N·m
• Climbing Angle: 12 Degrees
• Net Weight: 15.4 Lbs

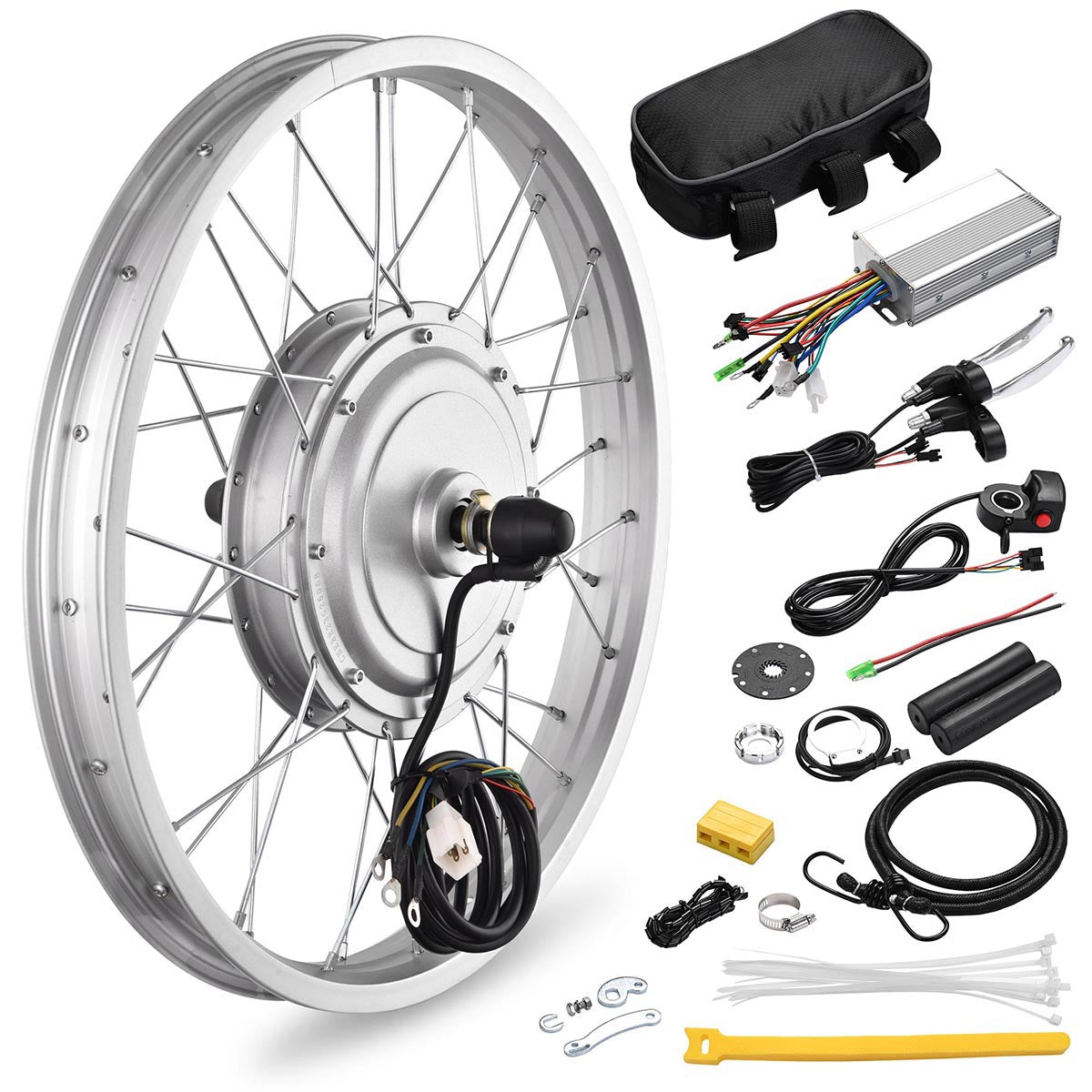

Also In The Box:

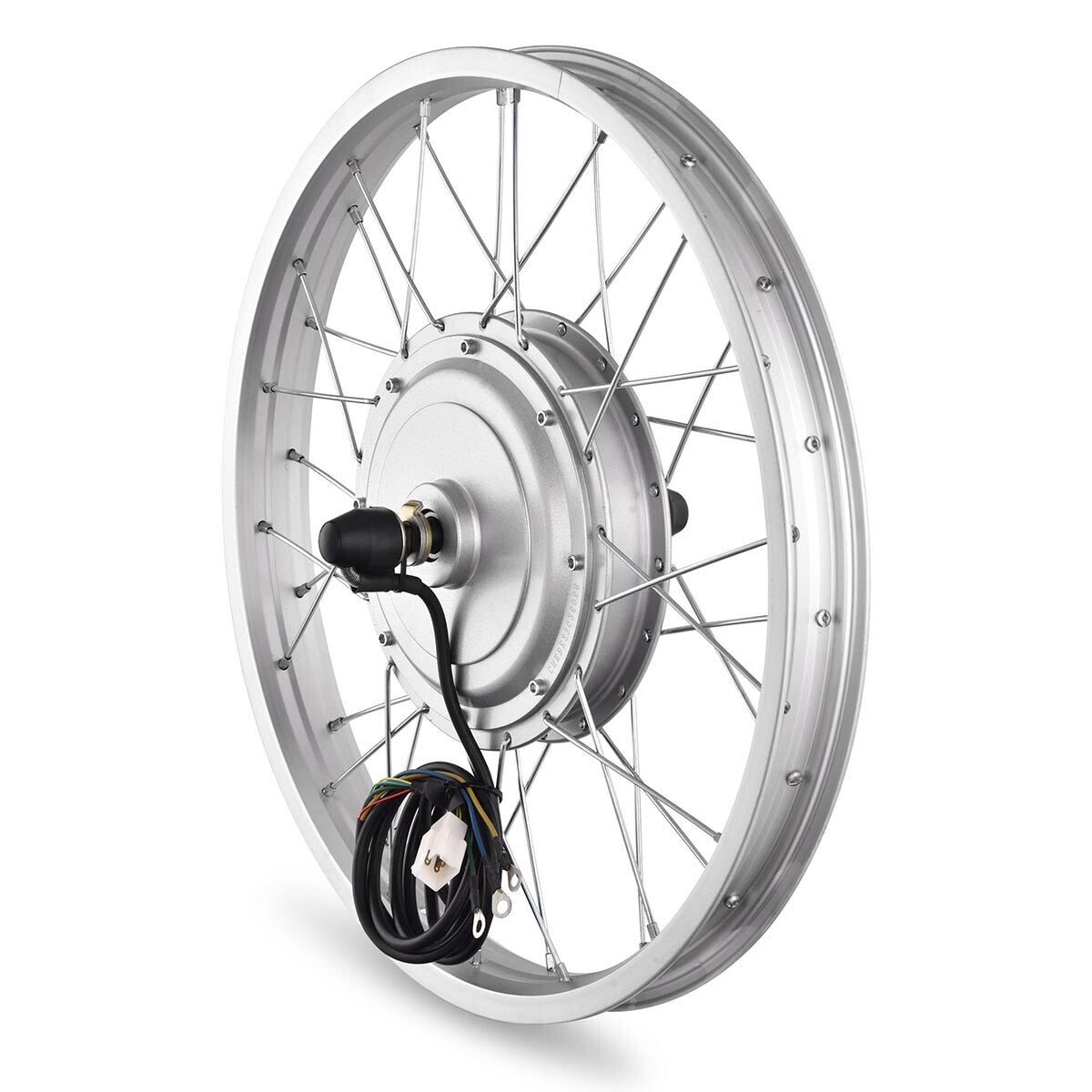

• 1x 24" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x Controller
• 2x Hand Brakes
• 2x Handle Grips
• 1x Thumb Throttle
• 1x Controller Bag
• 1x Strip
• 2x Winding Pipes
• 1x Spoke Key
• 1x Junction Box
• 2x Battery Wires
• 1 Set of Cable Ties
• 1x PAS Sensor

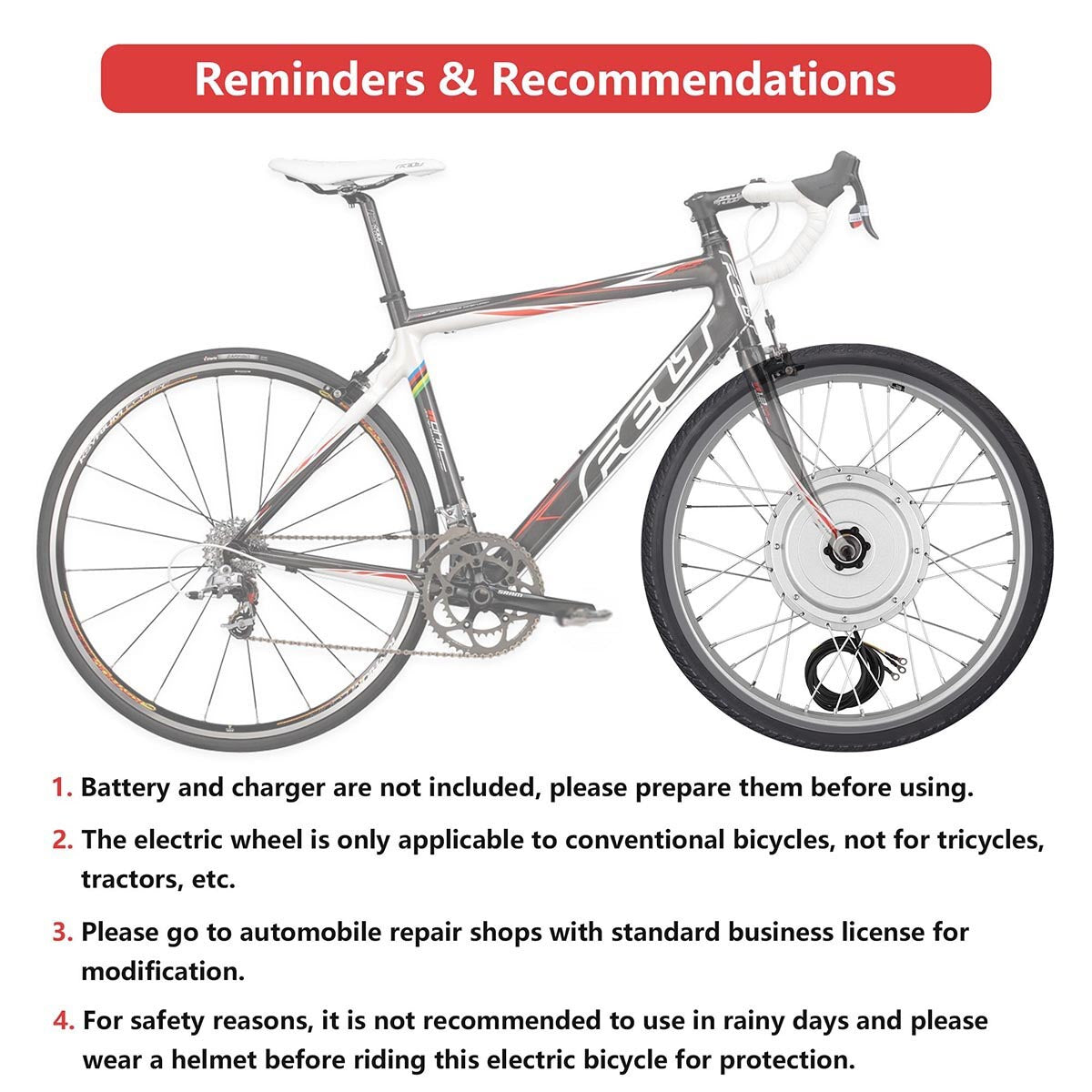

Notice

• Battery and charger are not included, please prepare them before using.
• The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc
• Please go to automobile repair shops with standard business license for modification.
• For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
